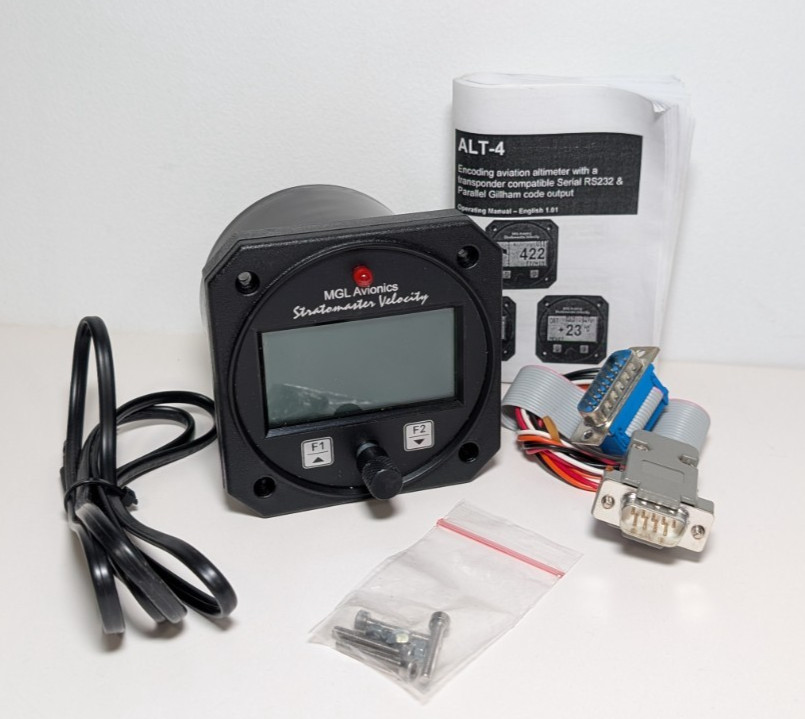

MGL AVIONICS ALT-4 ALTIMETER:
$220.00

Precision altimeter from –700 ft up to a maximum of 30 000 ft (-213m to 9144m)
Provides a transponder compatible Serial RS232 and parallel gillham code output.
Built in encoder test functions
The altimeter can display altitude in feet or meters, local pressure can be set in millibars or inches of
mercury
Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10 000 ft/min
VSI units can be in feet/minute (ft/min) or in meters/second (m/s)
Records the maximum and minimum OAT (outside air temperature) and maximum altitude reached in
permanent memory
Records maximum and minimum OAT in temporary memory since instrument power up
Standard 3 1/8” aircraft enclosure (can be front or rear mounted)
Rotary control plus 2 independent buttons for easy menu navigation and user input
Alarm output as well as a red LED illuminates when the alarm has been activated
Large backlit graphic LCD with adjustable contrast
Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
Light weight design
Field upgradeable firmware
