Core™ 2 the Extreme: Intel Retakes the Field Page 2

By SimHQ on July 14, 2006 in _technology2, hide

Back To Page 1

Test Systems Setup

Intel System

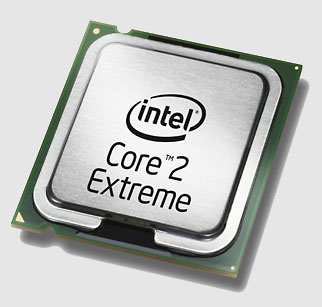

Core 2 Extreme X6800 (2.93 GHz)
Core 2 Duo E6700 (2.67 GHz)
Pentium 4 Extreme Edition 955 (3.46 GHz)
Intel D975XBX motherboard (975X chipset)

AMD Socket AM2

AMD Athlon 64 FX-62 (2.8 GHz)
ASUS M2N32-SLI Deluxe (nForce 590 chipset)

All three test setups shared the following system components.

2 GB (2 x 1 GB) of Corsair DDR2/800 (4-4-4-12) memory
ATI Radeon X1900 XTX (Catalyst 6.6)
Maxtor MaxLine III 250 GB SATA (16 MB buffer) hard drive
Plextor PX-712S DVD drive
Creative SoundBlaster X-Fi sound card
Enermax 550 Watt ATX power supply unit

The test systems were built using the newest BIOS release and chipset and add-in component drivers. Anti-aliasing, anisotropic filtering, and vsync were forced off in the graphics control panel during all game testing. Windows XP Professional (SP2) was installed and configured to have automatic updates, system restore, and all unnecessary startup services disabled. And Fraps 2.7.4 was used to record performance scores for applications that do not produce their own results. Testing was conducted using the following software:

Microsoft’s Windows Media Encoder 9.0
PCMark05 (v1.1.0)
Falcon 4: Allied Force (v1.0.7)
IL-2: Pacific Fighters (v4.0.4)
MS Flight Simulator 2004 (v9.1)
LockOn: Flaming Cliffs (v1.12a)
rFactor (v1070)
Call of Duty 2 (v1.03)

In recent dual-core articles SimHQ has scaled back somewhat by not testing our entire benchmark suite, yet for this article we decided to include a few more simulation titles to see how they fare with the design improvements found in Core 2.

Worth noting is that Intel’s review kit shipped sans a stock cooler, which is a first for this reviewer. A Zalman CNPS9500 cooler was installed in the Intel test system while the AM2-based FX-62 used the stock AVC cooler included in AMD’s review kit this May. This situation has no bearing on the performance characteristics of the tested parts since all coolers were more than adequate to keep the processors running well within specifications, but it also leaves us unable to comment on the quality of the cooler included in retail, Core 2 PIB (packed in box) purchases.
